Streetlighting

Navia M

Navia M Navia S

Functionalroad luminaire with high versatility and reliability

Roads and urban roads

Residential Streets

Car parks

Logistics platforms

Stations

Bicycle lanes

Robustness and functionality

The Navia M series is a road type luminaire, with a simple design but with great versatility, ideal for road lighting in urban environments and secondary roads.

Its robust design and easy adaptation make it an extremely functional luminaire. During the 10 years of existence of the brand, it has been the largest reference in terms of number of units installed in Spanish municipalities.

Download technical sheet

Within the Navia Series family, the NVM model offers solutions of up to 120W of power, guaranteeing optimum results on all types of streets and urban roads, and even on moderate or high speed roads. Its robust design, with an injected aluminium structure and finned cover, and a high degree of watertightness and protection against impacts, guarantees high reliability and durability over time.

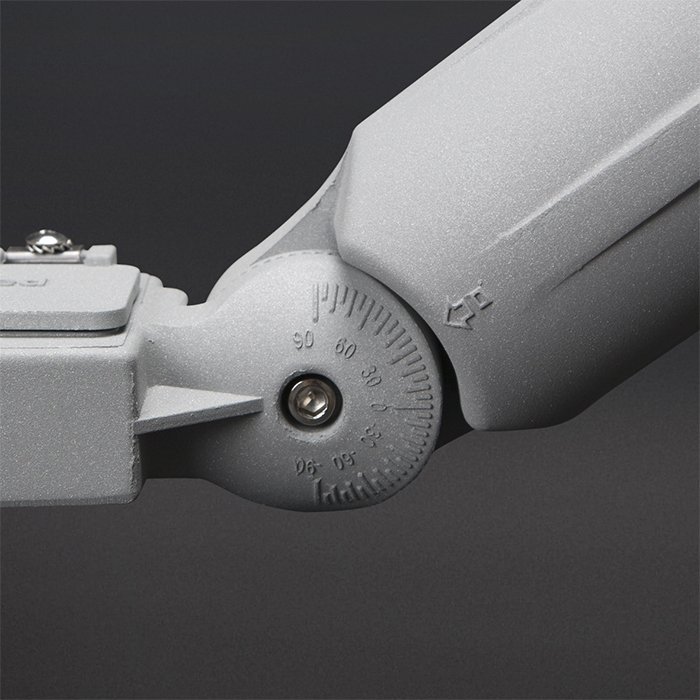

It is suitable for post-top or side-entry mounting, allowing tilt adjustment to adapt perfectly to the lighting needs of each route. The luminaire can be opened without tools, which facilitates installation at height for the installer. This road luminaire offers multiple lighting packages, with a wide range of photometric distributions, operating currents and dimming possibilities.

Technical sheet

CE; RoHS; EN 60598-1:2009 + A11:2009; EN 60598-2-3:2003 + Corr:2005 + A1:2011; EN 62031:2009 + A1:2011; EN 62471:2008; IES LM-80; EN 61347-1:2008; EN 61347-2-13:2006; EN 55015:2006 + A1:2007 + A2:2009; EN 61547:2009; EN 61000-3-2:2006 + A1:2009 + A2:2009; EN 61000-3-3:2008; EN 61000-4-2,3,4,5,6,8,11; UL 8750; IEC 60598-1:2008; IEC 60598-2-3:2002; IEC 62031:2008; IEC 62471:2008; IES LM-80; IEC 61347-1:2008; IEC 61347-2-13:2006; IEC 55015:2006 + A1:2007 + A2:2009; IEC 61547:2009; IEC 61000-3-2:2006 + A1:2009 + A2:2009; IEC 61000-3-3-3:2008; IEC 61000-4-2,3,4,5,6,8,11; UL 8750;
